Product introduction

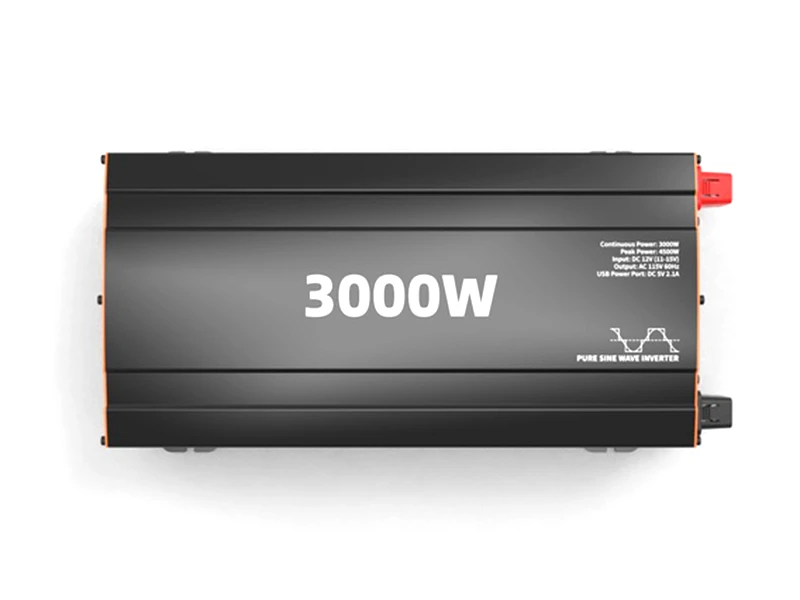

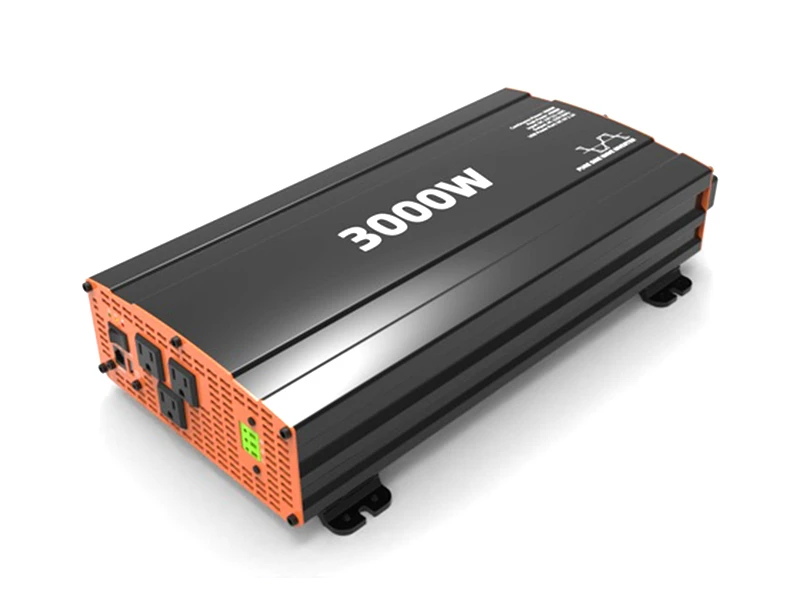

The SIC3012 pure sine wave inverter boasts a rated power of up to 3000W, efficiently converting DC power into clean and stable AC power. Its output waveform is comparable to mains power quality, providing safe and reliable power for various precision devices such as audio equipment and laptops. Internally, it utilizes a refined pure oxygen-free copper core, offering excellent conductivity, stable voltage output, low heat generation, and lower resistance, resulting in energy savings.

The compact design and lightweight 5.2kg make it ideal for mobile power applications such as outdoor camping and road trips. This product features strong instantaneous overload capacity, withstanding current surges of twice its rated power. Its pure sine wave output is clean and stable, effectively suppressing voltage fluctuations and electrical noise, ensuring the safe operation of connected devices.

The device integrates comprehensive safety protection functions, including low-voltage protection (LVD), high-voltage protection (HVD), overload and overheat protection, and is equipped with a 5V/2.1A USB interface and multiple AC output ports, supporting simultaneous use of multiple devices. Each product undergoes rigorous quality control throughout the entire process of assembly, fastening, testing, aging, and packaging before leaving the factory to ensure stable and reliable performance. The products have obtained CE certification and can be customized with sockets conforming to various national standards, logo engraving, and casing colors according to user requirements.

Specifications
技术参数 Specification
型号 Model SIC712 SIC1012 SIC2012 SIC3012
持续功率 Continuous power 700W 1000W 2000W 3000W
输入电压 Input Voltage 12V DC
输出电压 Output Voltage 230V AC
峰值功率 Peak surge 1400W 2000W 4000W 6000W
最大效率 Eficiency >90%
频率 Frequency 50Hz
满负载失真 Total harmonic
distortion(THD)
<3%
空载电流 No load
current draw
<0.8A <1.0A <2.0A <2.5A
低压警报 Battery low alarm 10.5V ± 0.5V DC
欠压保护 Battery low shutdown 10.0V ± 0.5V DC
过压保护 Over voltage shutdown 16.5V ± 0.5V DC
散热 Cooling fan Thermally and load controlled

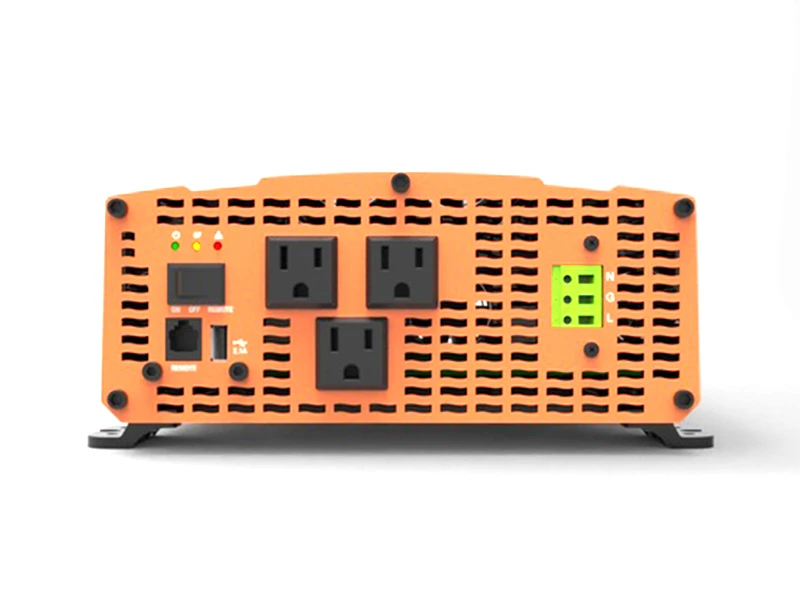

AC插座 AC output sockets 1
USB端口 USB power port 5V/2.1A
功率输出控制 Power output
control
Rocker switch
LNG端口 LNG Port KF105R-7.5
尺寸(mm) Dimension(mm) 306x199x87 316x199x87 434×245×104 474x245x104
重量(kg) Weight(kg) 2.2  2.3 4.4  5.2
认证 Certification CE
